TIMEKEEPING

  • Timekeeping for all auto- & motorsport events
  • 374 transponders
  • 2 systems which improves we can do 2 events at the same moment
  • Live-Timing
  • Resultservice by Mylaps Speedhive
  • Result screen in pitbox
  • Analyzing data & regrouping based on laptimes
  • Creating database with laptimes
  • Installation of detection loop in the racetrack



MYLAPS – SPEEDHIVE

Technical information about our system:

“MYLAPS Sports Timing specializes in the development of timing and scoring solutions for different kinds of racing sports. The software is developed for use in combination with MYLAPS timing hardware.”

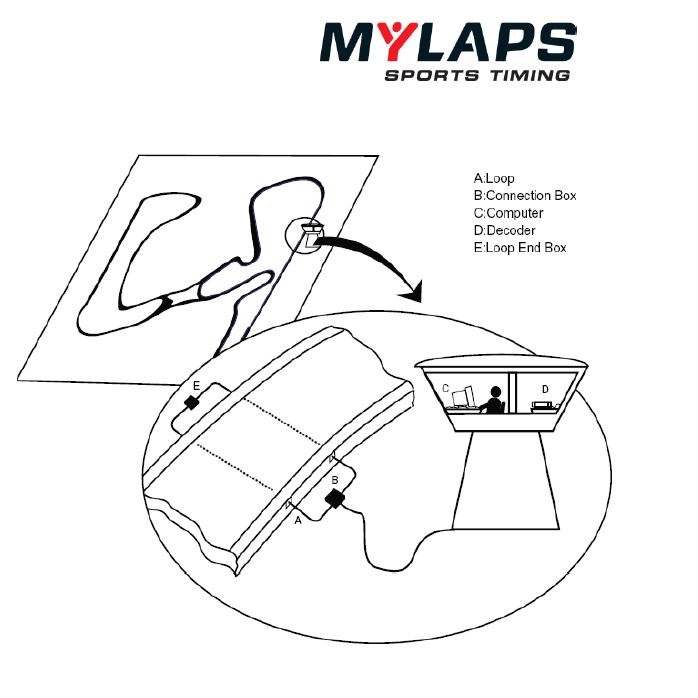

“MYLAPS timing systems are designed to time and score different kinds of racing events. A transponder is mounted on, by example, a car or motorcycle. The signal sent by a transponder is picked up by a detection loop installed in the track surface. The detection loop is connected to MYLAPS decoder. The decoder timestamps the received transponder signals and sends this data to a connected computer.”

“Transponders enable you to give each competitor a unique identification. The transponder is fixed to the vehicle with a transponder holder that is secured with bolts, screws, rivets or zip ties. (In our case, zip ties) When passing over the detection loop in the track, the transponder sends its signal to the loop.”

“The detection loop is embedded into the track surface and picks up each transponder passing. The unique signal of the transponder is picked up by the loop and transferred to the MYLAPS decoder. Several transponders can be picked up at exactly the same time. This ensures no transponders will be missed, even if 7 or 8 vehicles pass the loop at exactly the same time.”

“The MYLAPS X2 decoder is connected to the detection loop via a coax cable and receives the transponder passing data from the detection loop. It reads the unique transponder signal and gives the transponder an exact passing time. When received, it sends the passing information to the MYLAPS X2 Server to which the computer running the Orbits5 program is connected to.”

Using the MYLAPS software packages, we can upload the race results in a few clicks. By this we give the racers the information they deserve.

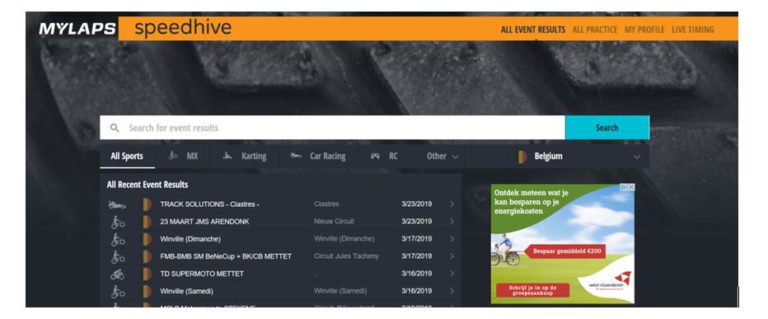

The free MYLAPS Speedhive app gives you quick access to the official results of motorized sport events and with the free introduction version of Live Timing spectators and fans can follow races all over the world.




BUY TRANSPONDER

You want to buy your own transponder?
Need further information or have questions?

Please contact us via e-mail !
